• The tractor is equipped with a 130 hp six-cylinder engine with a power factor of 15%;

  • LUK double clutches are responsible for the transmission of torque from the engine to the transmission;

  • Several types of synchronized gearboxes can be installed on the tractor: 12F + 4R, 12F + 12R and 24F + 8R;

  • Rear PTO of the tractor of two-speed independent type with electro-hydraulic control;

  • The tractor is equipped with three pairs of hydraulic outputs with Faster couplings (Italy) and one pair of hydraulics with floating regulation;

  • Wet clutch disc brakes provide maximum effective and safe braking;
    To facilitate starting at subzero temperatures, a glow plug is installed on the tractor;

  • In the basic configuration, the tractor cab has additional dust protection and is equipped with an air conditioner.

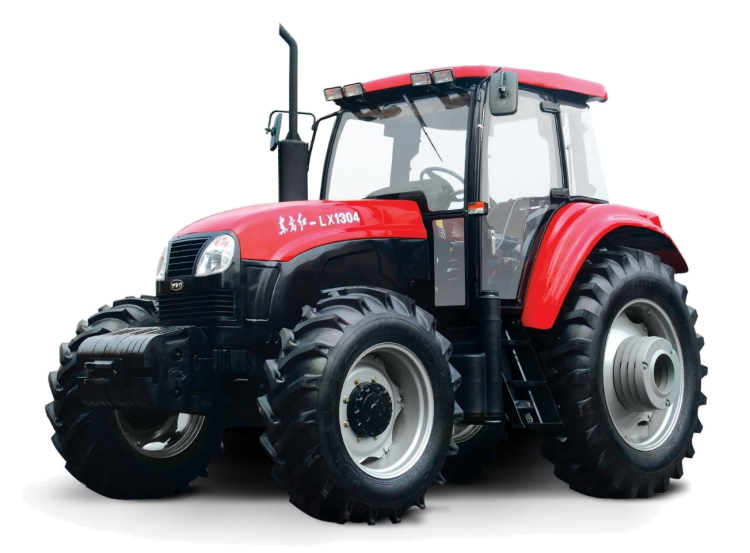

YTO-LX1304

Engine model

LR6M5-23

Engine's type

Six-cylinder, vertical, four-stroke, direct fuel injection

Engine displacement, (l)

7,7

Rated power (kW) / Speed ​​(rpm)

95.6/2300

Drive type

4×4

Overall dimensions
Length×Width×Height), (mm)

5050×2370×2890

Wheelbase, (mm)

2688.5

Minimum clearance,
(mm)

470

Minimum operating weight,
(kg)

4910

Tyre size, front/back

14.9-26/18.4-38

Wheel track, front/back (mm)

1822-2153/1662-2262

Number of gears,

(F/R)

12F+4R, 12F+12R и 24F+8R

Speed ​​range (km/h),
(F/R)

2.19-29.63/4.72-13.83

Lifting force
 (610mm), (kN)

≥25.9

Pulling force
(Swivel joint), (kN)

29
