• The tractor is equipped with a 35 hp three-cylinder diesel engine, which meets the Chinese standards of Category III (similar to Tier IIIa);
  •  The double clutch is responsible for the transmission of torque from the engine to the transmission;
  • The tractor is equipped with an 8x4 gearbox with eight forward gears and four reverse gears;
  • Rear PTO of the tractor two-speed; The tractor is equipped with two pairs of hydraulic outputs;
  • Wet clutch disc brakes provide maximum braking efficiency and safety.

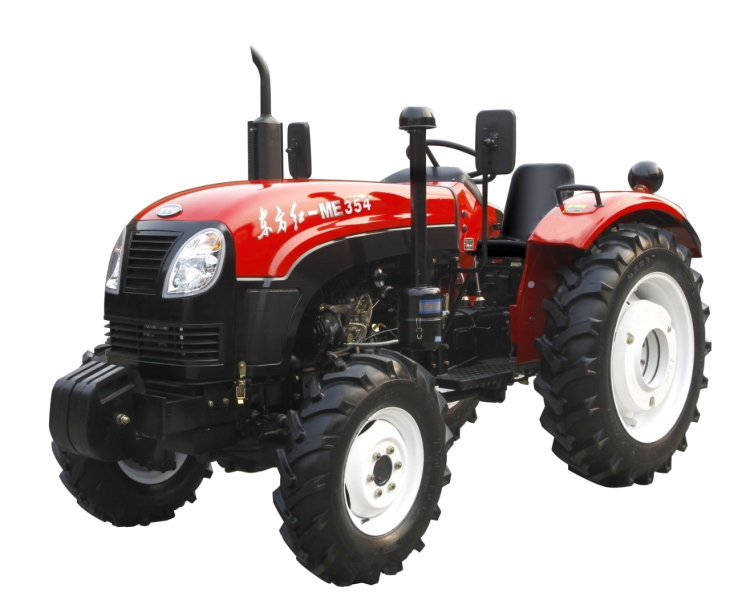

YTO-ME354

Engine model

ZN390T

Engine's type

Three-cylinder, single-row, vertical,
water-cooled, four-stroke

Engine displacement, (l)

1.81

Rated power (kW) / Speed ​​(rpm)

25.7/2200

Drive type

4×4

Overall dimensions
Length×Width×Height) (mm)

3600×1485×1940

Wheelbase, (mm)

1745

Minimum clearance (mm)

280

Minimum operating weight, (kg)

1680

Tyre size, front/back

7.50-16/11.2-28

Wheel track, front/back (mm)

1200/1100-1400

Number of gears,

(F/R)

8F+4R

Speed ​​range (km/h),
(F/R)

2.25-29.53/3.34-10.20

Lifting force
 (610mm) (kN)

≥5,8

Pulling force
(Swivel joint) (kN)

7,7
