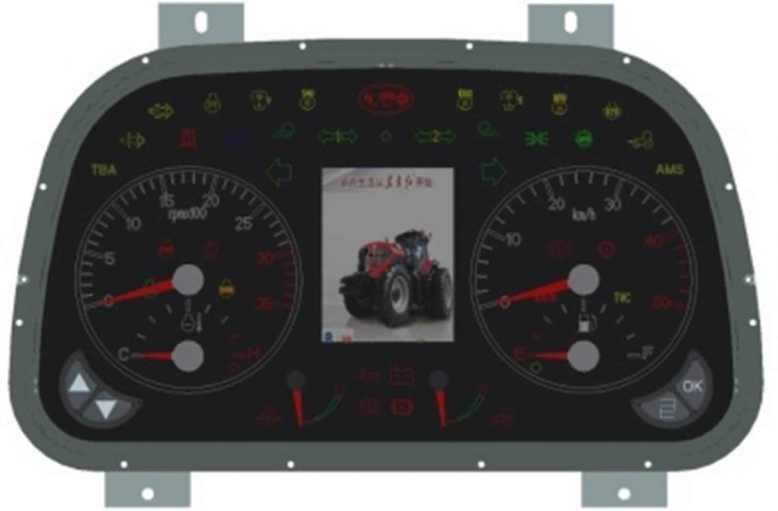

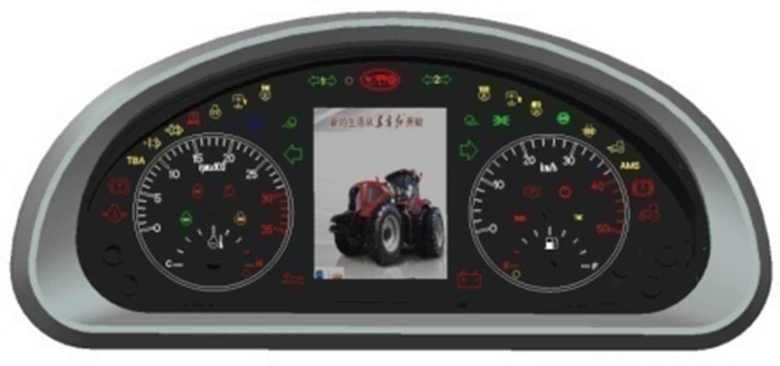

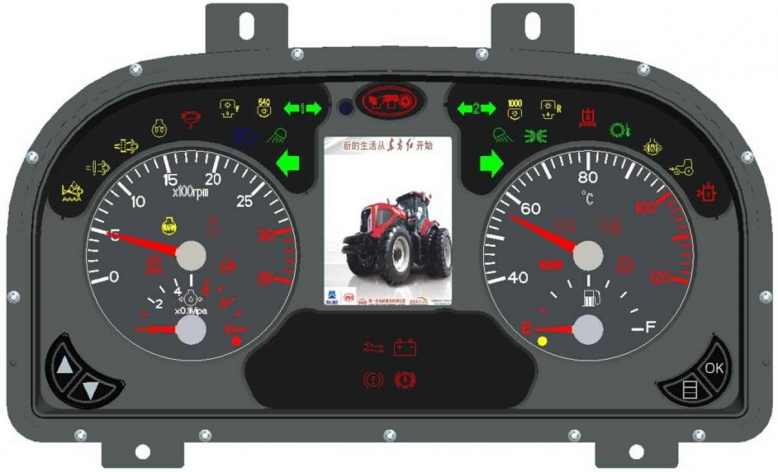

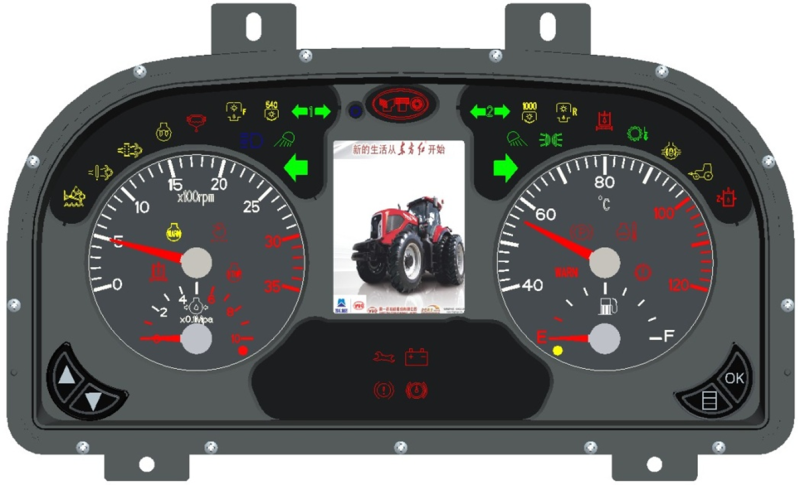

* Sample panels are enlarged on click

     At the request of the customer, the instrument panel functions can meet all the technical requirements and standards of the European Union directives and the technical regulations of the Eurasian Customs Union.

     The following is a comparison of the YTO instrument panel with the Italian company COBO:

Function

YTO

COBO

Power Supply Unit

5-33 V

10-32 V

Operating Temperature
Range

-30°... -75°C

-30°... -70°C

Protection Level

IP66/IP65

IP66/IP65

Connector

1х80 pin

2х26 pin

CAN

2 ch.（125/250/500KB）

2 ch.（125/250/500KB）

Hour Counter

Stepper motor

Stepper motor

Indication Lamps

36 pcs

27 pcs

Controll Buttons

4 pcs

4 pcs

Instrument Panel Light

LED

LED

Buzzer

Yes

Yes

Fixation

Screws

Rubber coupling/ring

Signal Input

34 channel digital

2 channel frequency

6 channel puls

24 channel digital

2 channel frequency

5 channel puls

Output

12V, 5V

5V

Other Functions

  • With the help of the built-in Beidou module, the functions of orientation, data transmission, etc. can be implemented;
  •  Built-in multi-position switch and position indication;
  •  Self-adjustment of the device brightness;
  •  Built-in module for diagnostics of engine and other systems failures.

Self-adjustment of the device brightness















     YTO produces instrument panels operating with analog and digital signals and compatible with STAGE-3A and STAGE-3b engines.

Available functions of the YTO instrument panel:

  • 4 or 6 dial and 2 virtual instruments display the six most important parameters of the machine or tractor (engine rmp and temperature, speed, oil volume in the oil tank, oil pressure in the engine, oil pressure in the engine), include all elements required by EU legislation. Additionally, two virtual pointers can demonstrate extended requirements for monitoring the key tractor parameters;

  • 36 indication lamps will meet all the established requirements for tractors;

  • Navigation;

  • Video demonstration: there is a function of broadcasting images from two cameras, it is possible to meet the requirements for the control of invisible areas and safe driving of agricultural machines;

  • Alarm of accidents and failures: using the system bus the customer can read information about the malfunction of the engine, electronic control, gearbox, hydraulic system, etc., for convenient and timely maintenance of the machine by consumers and repair personnel;

  • Power-shift operating mode display;

  • Diagnostic system;

  • Compact size integrated into the design;

  • Monitoring the engine and tractor operation system + tractor remote monitoring and interlocking system;

  • Real-time indication of fuel consumption and load factor.

     During the integration and design of the device, the customer can impose requirements on the design of the housing, to the panel devices, to the readings and signals. The approximate content of the requirements is shown in the table below:

Mechanical Resistance and Protection Requirements

  • requirements for vibration resistance;
  • requirements for moisture resistance;
  • requirements for high temperature resistance;
  • requirements for resistance to low temperature;
  • shock-proofability at high temperature and low temperature.

Electromagnetic Compatibility Requirements

  • requirement for elements against electromagnetic interference;

  • requirement for electromagnetic radiation units;

  • maximum load requirement;

  • the rate of instantaneous forward positive voltage;

  • short circuit protection requirement;

  • requirements for electrostatic shielding.

Control Signal Requirements

  • signal type.

Fault Diagnosis standard

  • self-diagnosis requirement.

Appearance Requirements

  • resistance to ultraviolet exposure;
  • dial scale and font size;
  • indication on the dial, color and size of division zones.

Brightness Rate

  • backlight, indication lamps, LCD brightness (daytime / nighttime);
  • indication and signal lamps;
  • standard of color and contrast of LCD, backlighting, indication and control lamps.

Information Rate

  • norm for electricity, voltage drop across devices;
  • requirements for the content and display of information on the LCD screen;
  • requirements for switching and control buttons.
